Apache Iceberg Explained

Apache Iceberg is the world’s most advanced, high-performance Open Table Format. Originally developed at Netflix to solve the catastrophic performance bottlenecks of the legacy Apache Hive Metastore, Iceberg has rapidly become the absolute de facto standard for building a modern Open Data Lakehouse. At its core, Iceberg is an incredibly complex metadata tracking system. It does not replace the underlying storage (like Amazon S3 or Apache Parquet files), and it does not execute SQL queries (like Dremio or Apache Spark). Instead, Iceberg acts as the strict, mathematical ledger sitting perfectly between the storage and the compute, guaranteeing absolute ACID transactional consistency across petabytes of chaotic object storage data.

Before Iceberg, the Hadoop ecosystem relied entirely on “Directory-Based” tracking. If a database had 10 million files, the Hive Metastore tracked them by their physical S3 folder paths (e.g., s3://bucket/data/year=2024/month=10/). When a query engine executed a SELECT statement, it was forced to execute an s3://list() command to find the actual files inside those folders. This directory scanning process could literally take thirty minutes before the analytical query even began to execute math. Iceberg completely destroys this bottleneck by tracking data at the file level rather than the directory level, transforming a 30-minute massive network scan into a 3-millisecond local metadata lookup.

The Architecture of File-Level Tracking

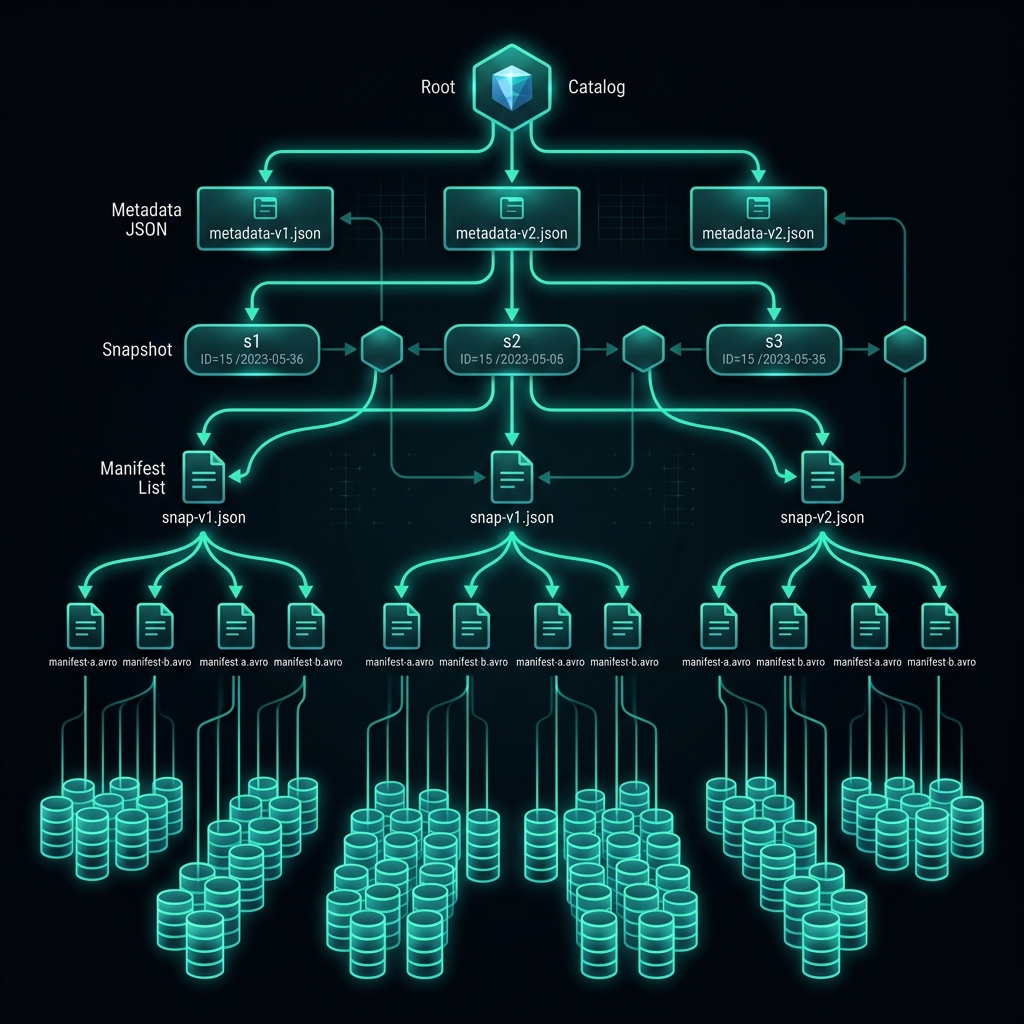

Iceberg’s ability to provide sub-second query planning over massive datasets relies entirely on its strict, hierarchical metadata tree. This tree acts as an index of indexes, allowing query engines to rapidly prune irrelevant data.

1. The Table Metadata File

When a compute engine connects to an Iceberg table, it first asks the Catalog for the physical location of the current Table Metadata file (a standard JSON file). This file contains the absolute truth about the table: the current schema, the exact partitioning rules, and a highly structured list of all Historical Snapshots.

2. Snapshots and Manifest Lists

A Snapshot represents the exact, mathematically consistent state of the table at a specific microsecond in time. The Snapshot points directly to a single Manifest List (an Avro file). The Manifest List acts as an index of indexes. It contains a list of all Manifest Files that belong to this snapshot, and crucially, it stores the upper and lower mathematical bounds of the data within those Manifest Files (e.g., “Manifest A contains data for the year 2024, Manifest B contains data for 2025”).

3. Manifest Files and Parquet Data

The Manifest Files (also Avro files) contain the exact, physical S3 URI strings pointing directly to the individual Apache Parquet data files. Like the Manifest List, the Manifest File also tracks column-level statistics for each Parquet file (e.g., “Parquet File 1 contains Customer IDs between 1 and 10,000. It contains zero null values in the Status column”).

The Pruning Execution (Query Planning)

When an analyst executes SELECT * FROM sales WHERE year = 2025 AND customer_id = 500, the query engine absolutely does not scan the raw Parquet files. It executes a massive metadata pruning process:

1. It reads the Manifest List and instantly drops Manifest A (because it only contains 2024 data).
2. It reads Manifest B, evaluates the column statistics for the Parquet files within, and instantly drops Parquet Files 3 and 4 (because they do not contain Customer ID 500).
3. The engine executes the query by reading exactly one specific Parquet file, completely bypassing the massive network latency of scanning millions of irrelevant files.

Core Capabilities of Apache Iceberg

Iceberg’s massive adoption is driven by features that were historically impossible on distributed object storage.

Hidden Partitioning

In legacy Hive systems, changing a partition strategy (e.g., switching from partitioning by Month to partitioning by Day) was a catastrophic engineering event that required completely rewriting the entire multi-terabyte dataset. Furthermore, analysts had to explicitly remember to query the partition column (e.g., WHERE month = 10), otherwise the engine would accidentally scan the entire multi-petabyte database, resulting in a massive cloud bill. Iceberg utilizes Hidden Partitioning. The mathematical partition logic is stored explicitly in the metadata, entirely abstracted from the physical files. An engineer can execute an ALTER TABLE command to change the partition strategy instantly, without moving a single byte of physical data. The analyst simply queries WHERE timestamp = '2025-10-14', and Iceberg autonomously translates the query to hit the correct underlying partitions.

Schema Evolution

In traditional databases, renaming a column or changing a data type requires a massive, blocking ALTER TABLE operation that locks the database. Iceberg tracks columns by unique, immutable Integer IDs, not by their string names. If a developer renames the column order_value to total_revenue, the Integer ID remains exactly the same. When the engine reads the old Parquet files, it mathematically maps the new string name to the old data without requiring any massive table rewrites. You can confidently drop, add, or rename columns instantly with absolute zero downtime.

Optimistic Concurrency Control (OCC)

Iceberg guarantees that multiple systems can write to the same table simultaneously without locking the entire lake. When Apache Spark and Apache Flink both attempt to write to the table at the exact same millisecond, they both generate their new metadata trees independently in isolation. They then attempt to commit to the Catalog. The Catalog utilizes Optimistic Concurrency Control to mathematically verify if the base snapshot has changed. One writer succeeds; the other writer is notified that the table has updated and is forced to seamlessly retry the operation against the new snapshot, completely preventing data corruption while maintaining massive write throughput.

The Catalog Ecosystem

Iceberg relies heavily on the Catalog to act as the single source of concurrency enforcement. The industry is rapidly standardizing on the Iceberg REST Catalog API. By utilizing a REST-compliant catalog (like the open-source Apache Polaris project), organizations guarantee that any engine in the world (Dremio, Snowflake, Spark, Flink) can safely authenticate, retrieve the latest snapshot, and execute queries without requiring proprietary Hive MetaStore protocols or vendor-locked AWS Glue dependencies.
