Row vs. Column: How Storage Layout Shapes Everything

<!- Meta Description: Row stores keep records together for fast transactions. Column stores keep field values together for fast analytics. Here is how each layout works and when to use it. -> <!- Primary Keyword: columnar vs row storage -> <!- Secondary Keywords: column-oriented database, row store performance, data storage layout ->

Cross-posted. This article’s canonical home is Alex Merced’s Lakehouse Blog.

Read the complete Query Engine Optimization series:

• Part 1: How Query Engines Think: The Tradeoffs Behind Every Data System
• Part 2: Row vs. Column: How Storage Layout Shapes Everything
• Part 3: How Databases Organize Data on Disk: Pages, Blocks, and File Formats
• Part 4: B-Trees, LSM Trees, and the Indexing Tradeoff Spectrum
• Part 5: Inside the Query Optimizer: How Engines Pick a Plan
• Part 6: Volcano, Vectorized, Compiled: How Engines Execute Your Query
• Part 7: Buffer Pools, Caches, and the Memory Hierarchy
• Part 8: Partitioning, Sharding, and Data Distribution Strategies
• Part 9: Hash, Sort-Merge, Broadcast: How Distributed Joins Work
• Part 10: Concurrency, Isolation, and MVCC: How Engines Handle Contention This is Part 2 of a 10-part series on query engine design. Part 1 (Overview) introduced the nine decisions every engine must make. This article covers the first and most fundamental: how bytes are arranged on disk.

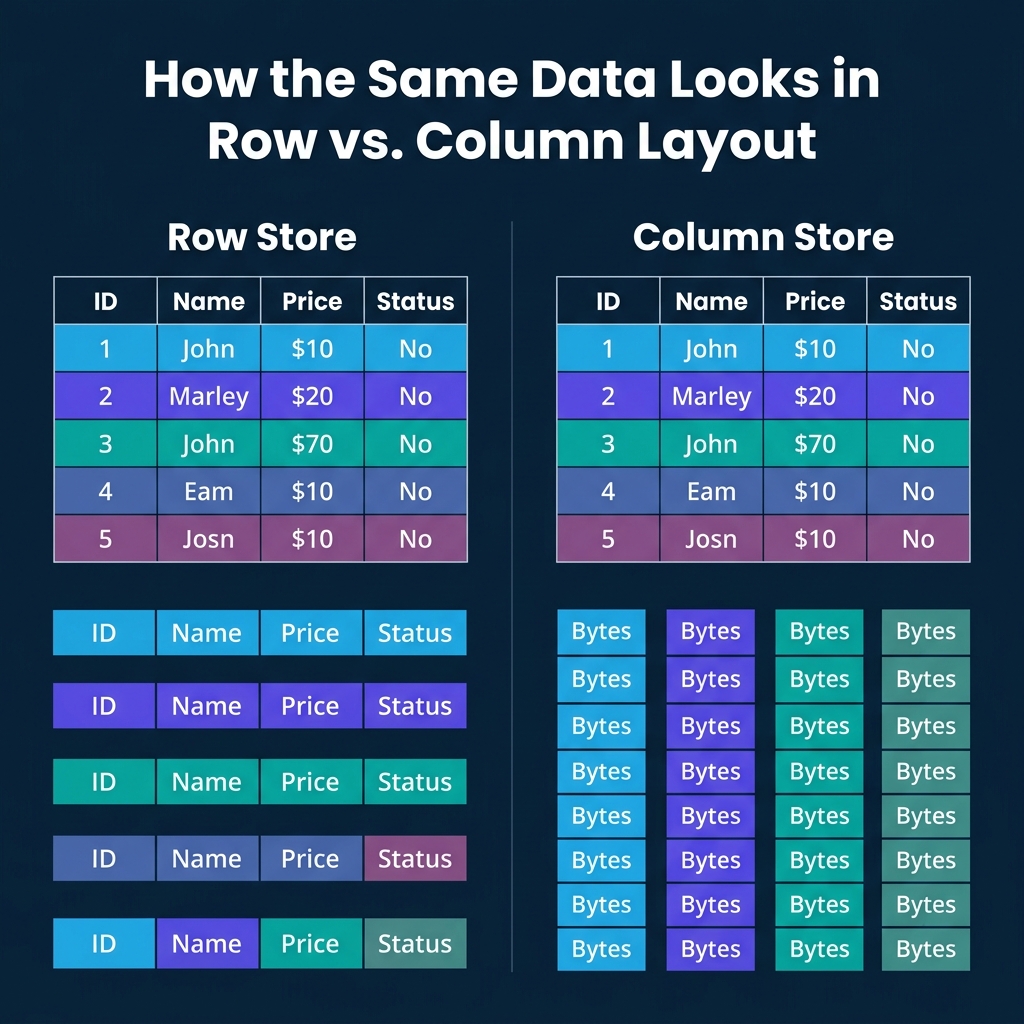

How Row Storage Works

A row store keeps all fields of a record physically together on a disk page. A page is typically 4KB to 16KB. Each page holds multiple complete “tuples” (records). When you read one page, you get every field for every record on that page.

This layout is optimized for transactional workloads. Looking up a customer by ID? One page read gives you every field: name, email, address, balance, status. Inserting a new order? One write puts the entire record in one place. Updating a single field? The engine finds the tuple and modifies it in place.

PostgreSQL stores rows as heap tuples with a header containing transaction visibility info and a null bitmap. MySQL/InnoDB organizes rows in a clustered B-tree indexed by primary key. Oracle and SQL Server both default to row-based storage.

The weakness shows up with analytical queries. If your table has 50 columns and your query needs 3 of them, a row store still reads all 50 for every row. The other 47 columns ride along for free, wasting I/O bandwidth and polluting your CPU cache.

How Column Storage Works

A column store flips the layout. Instead of keeping all fields of a record together, it keeps all values for a single field together. Every price value is stored contiguously. Every status value is stored contiguously. And so on.

The data is typically organized in “row groups” (Parquet calls them this, ORC calls them “stripes”), each containing 100K to 1M rows. Within each row group, each column is stored as a separate “column chunk” with its own compression and encoding. Values at the same position across column chunks belong to the same logical record.

This layout is optimized for analytical workloads. When a query computes AVG(price) WHERE status = 'shipped', the engine reads only the price and status columns. The other 48 columns are never touched.

Systems like DuckDB, ClickHouse, Snowflake, Dremio, Redshift, and BigQuery all use columnar storage as their primary layout. Apache Parquet and ORC are open columnar file formats used across the data ecosystem.

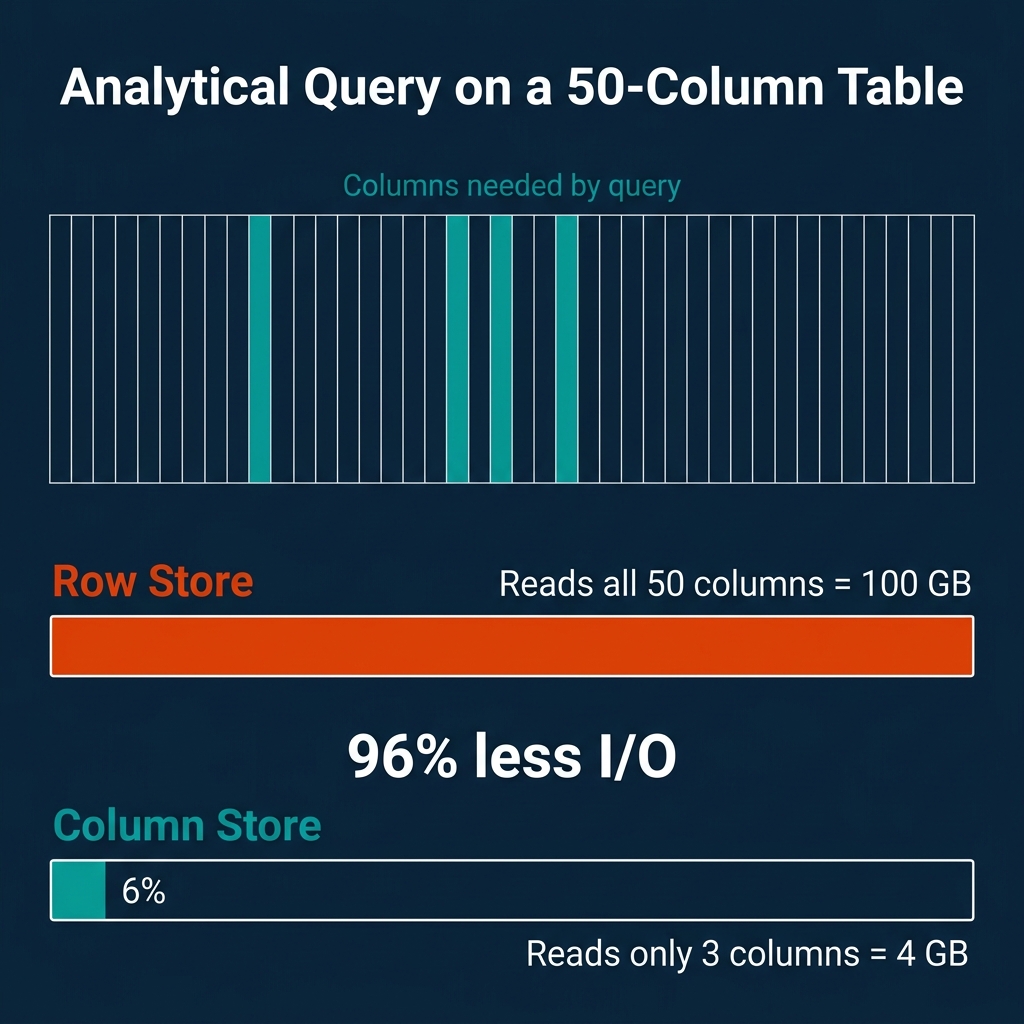

The I/O Math

The savings from columnar storage scale with table width. Consider a concrete example:

• Table: 50 columns, 1 billion rows, 100 bytes per row average
• Total data: 100 GB
• Query: SELECT AVG(price) FROM orders WHERE status = 'shipped'
• Columns needed: 2 (price + status), approximately 4 GB

Storage Layout	Data Read	Percentage of Total
Row store	100 GB	100%
Column store	4 GB	4%

That is a 25x reduction in I/O. For a table with 200 columns (common in analytics), the ratio gets even more dramatic.

The tradeoff goes the other direction for point lookups. Fetching one complete record from a column store requires reading from every column file: 50 separate reads for a 50-column table. A row store does it in one.

Why Columnar Compression Is So Much Better

Uniform data within a column enables specialized encoding that mixed-type rows cannot use:

Encoding	Best For	How It Works
Run-Length (RLE)	Sorted columns with repeated values	Store (value, count) pairs. A column of 1M “USA” values becomes one entry.
Dictionary	Low-cardinality strings	Map each unique string to an integer ID. Store the small integers instead.
Delta	Sorted integers/timestamps	Store differences between consecutive values. Monotonic sequences shrink to near-zero.
Bit-packing	Small integers	Use the minimum number of bits per value instead of a full 32 or 64 bits.

These techniques routinely achieve 5-10x compression on analytical datasets. Row stores cannot match this because adjacent bytes in a tuple belong to different data types, defeating any type-specific encoding.

Late Materialization

Column stores gain additional performance by deferring tuple reconstruction until the very end. This technique is called late materialization:

1. Scan the status column. Produce a selection vector (a bitmap of matching row positions).
2. Use that selection vector to read only the matching positions from the price column.
3. Compute AVG(price) on the filtered values.

At no point did the engine reconstruct a full row. It worked entirely with columnar arrays and position-based selection. This avoids copying irrelevant data and keeps computation in tight, cache-friendly loops that exploit CPU SIMD instructions.

Dremio uses Apache Arrow as its native in-memory columnar format, which is specifically designed for this kind of vectorized, late-materialized processing.

Hybrid Approaches

Not every system picks one side and stays there.

SQL Server lets you add nonclustered columnstore indexes to row-based tables. The query optimizer decides which format to use for each query. Oracle offers an In-Memory Column Store (IMCS) that keeps hot data in both row and column format simultaneously in memory.

Wide-column stores like Cassandra and HBase take a different path. They group related columns into “column families.” Within a family, data is stored together (row-like). Across families, storage is separate (column-like). This optimizes for workloads where certain columns are always accessed together.

Parquet and ORC use a hybrid layout at the file level: data is divided into row groups (row-like partitioning), and within each row group, each column is stored separately (column-like). This balances the benefits of columnar scanning with practical record reconstruction when needed.

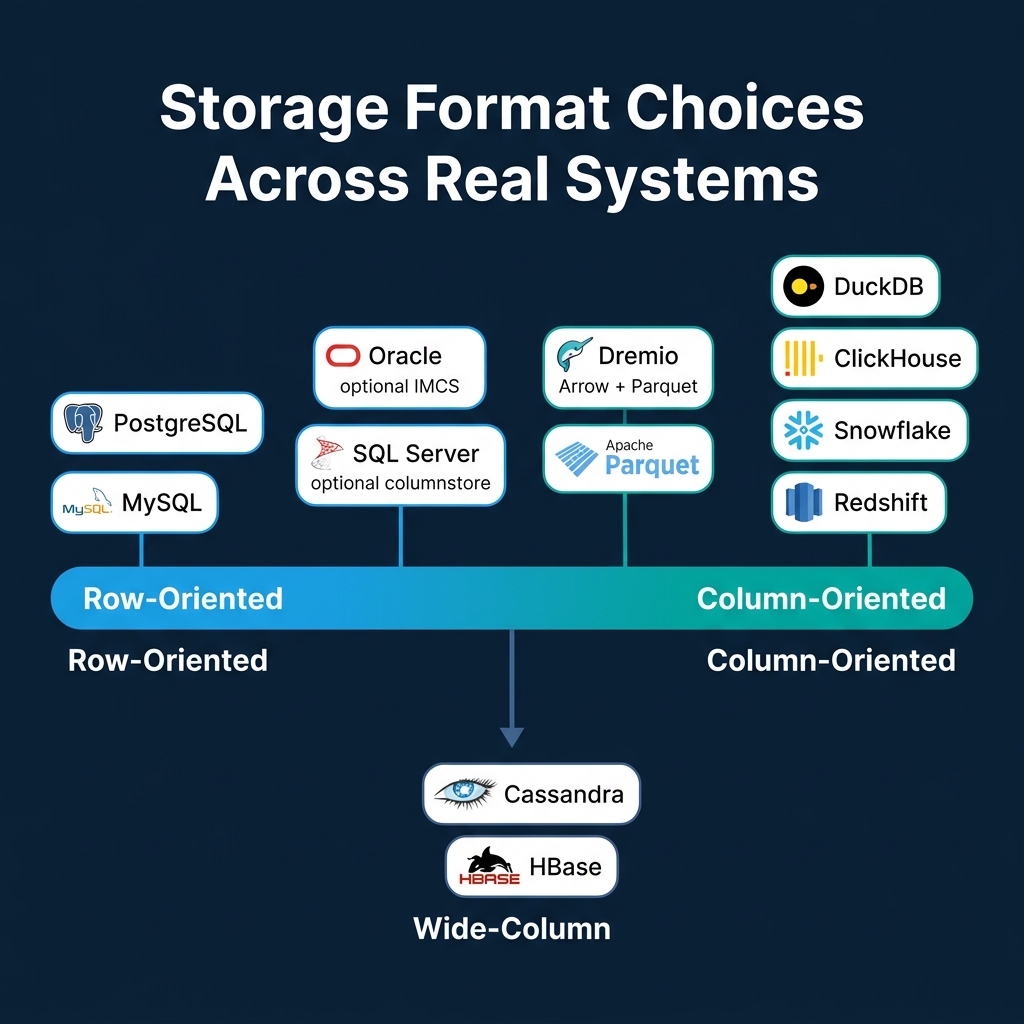

Where Real Systems Land

System	Storage Format	Primary Workload	Notes
PostgreSQL	Row	OLTP	Heap tuples, TOAST for large values
MySQL/InnoDB	Row	OLTP	Clustered B-tree by primary key
SQL Server	Row + optional column	Mixed	Columnstore indexes for analytics
Oracle	Row + optional column	Mixed	In-Memory Column Store (IMCS)
DuckDB	Column	OLAP (embedded)	Morsel-driven parallelism
ClickHouse	Column	OLAP (real-time)	MergeTree engine, sparse indexes
Snowflake	Column	Cloud OLAP	Micro-partitions
Dremio	Column	OLAP (lakehouse)	Arrow in-memory, reads Parquet/Iceberg
Redshift	Column	Cloud OLAP	MPP, zone maps
Cassandra	Wide-column	Write-heavy distributed	LSM-based, column families

When to Choose Which

The choice is driven by your dominant access pattern:

• Mostly point lookups and transactional writes (user profiles, order processing, session management): use a row store. PostgreSQL and MySQL are battle-tested here.
• Mostly analytical scans and aggregations (dashboards, reports, data science): use a column store. DuckDB for embedded, ClickHouse or Dremio for distributed, Snowflake or BigQuery for fully managed cloud.
• Both workloads on the same data: use separate systems for each (the most common production pattern) or a hybrid like SQL Server with columnstore indexes.

Trying to force a row store into heavy analytics or a column store into high-frequency transactions will produce consistently poor results. The storage layout is the first domino, and it falls in one direction.
